Horizontal CNC Rotary Table

Ideal for horizontal boring mill applications

Can be connected to a machine’s control or run with a stand-alone control

Hydraulic brake system allows for heavy cutting

Base design can be customized to customer’s interface requirements

HR 500 With Fixture

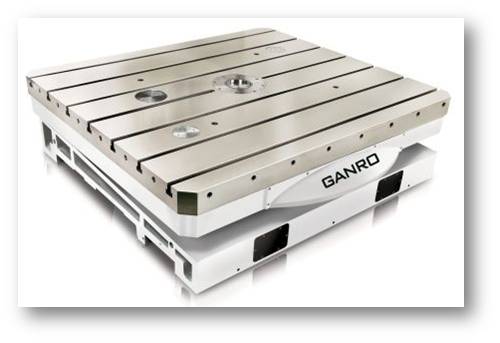

Ganro Horizontal CNC Rotary Tables

The HR Series is Ganro Industrial Corporation’s horizontal CNC rotary table design. This rotary table design is available with table tops ranging from 400mm (15.74”) to 3000mm (118.11”) square. Ganro’s horizontal CNC rotary tables can be used in various areas of manufacturing but are ideal for horizontal boring mill applications. The HR Series design can be utilized as a full rotating axis incorporated into a machine’s control or as an indexer with Ganro’s M-Mate AC servo controller. They are designed for horizontal mounting only and offer high weight capacities for those large workpieces. The HR Series rotary tables utilize a hydraulic brake system to insure rigid clamping during machining. All Ganro horizontal CNC rotary tables and indexers use Ganro’s core technology of a double lead worm shaft and worm wheel system for high precision and reduced backlash. Ganro rotary tables are assembled using cross cylindrical roller bearings with high rotation accuracy capable of bearing heavy loads in every direction.



You may also be interested in our Horizontal Index Tables

Horizontal CNC Rotary Tables
Item/Model No. HR-400 HR-500 HR-630 HR-800 HR-1000 HR-1416 HR-1618 HR-2020 HR-2525 HR-3030
Table Dimension mm / inch 400 / 15.75″ 500 / 19.68″ 630 / 24.80″ 800 / 31.49″ 1000 / 39.37″ 1400×1600 / 55″×63″ 1600×1800 / 63″×71″ 2000 / 78.74″ 2500 / 98.42″ 3000 / 118.11″
Table Swing Diameter mm / inch Ø538 / 21.18″ Ø680 / 26.77″ Ø856 / 33.70″ Ø1082/ 42.60″ Ø1346 / 52.99″ Ø2052 /80.79″ Ø2284 / 89.92″ Ø2500 / 98.42″ Ø3202 / 126.06″ Ø3905 / 153.75″
Overall Height mm / inch 270 / 10.63″ 295 / 11.61″ 330 / 13.00″ 360 / 14.17″ 390 / 15.35″ 455 / 17.91″ 500 / 19.68″ 550 / 19.69″ 650 / 25.53″ 650 / 25.59″
Width of T Slot mm 14H7 18H7 20H7 22H7 22H7 22H7 22H7 28H7 28H7 28H7
Servo Motor Type FANUC α12i α22i α22i α22i α30i α30i α30i α40i α40i α40i
MITSUBISHI HF-203 HF-353 HF-353 HF-353 HF-453 HF-453 HF-453 HF-703 HF-703 HF-703
SIEMENS 1FK7083 1FK7101 1FK7101 1FK7101 1FK7103 1FK7103 1FK7103 1FK7105 1FK7105 1FK7105
HEIDENHAIN QSY155B QSY155D QSY155D QSY155D QSY190C QSY190C QSY190C QSY190F QSY190F QSY190F
Total Reduction Ratio 1:90 1:180 1:180 1:180 1:240 1:720 1:720 1:900 1:2000 1:1440
MIN. Increment deg. 0.001° 0.001° 0.001° 0.001° 0.001° 0.001° 0.001° 0.001° 0.001° 0.001°
MAX. Rotation Speed
(Motor: 2000 RPM)
RPM 22.2 11.1 11.1 11.1 8.3 2.7 2.7 2.2 1.7 1.4
Indexing Accuracy sec. 15″ 15″ 15″ 15″ Based on Encoder
Repeatibility
Accuracy
Unidirectional sec. 4″ 4″ 4″ 4″
Bidirectional 8″ 8″ 8″ 8″
Clamping Torque Hydraulic kgf•m / lbf•ft 470 / 3,340 700 / 5,063 1,200 / 8,680 1,400 / 10,126 2,400 / 17,360 3,150 / 22,789 3,600 / 26,039 4,500 / 32,549 6,500 / 47,015 9,000 / 65,097
MAX. Work Load kg / lbs 500 / 1,102 700 / 1,543 1,200 / 2,645 3,000 / 6,614 5,000 / 11,023 10,000 / 22,046 15,000 / 33,069 25,000 / 55,115 35,000 / 77,161 50,000 / 110,230
N.W. kg / lbs 400 / 882 550 / 1,213 860 / 1,896 1,250 / 2,756 2,000 / 4,410 4,000 / 8,819 5,500 / 12,126 8,500 / 18,739 11,000 / 24,251 15,000 / 33,069


Download and Print Specifications (Use Landscape Layout when Printing)



Certified Horizontal Rotary Table Service Techs

As the exclusive importer and dealer of Ganro products in the United States, CNC Indexing & Feeding Technologies stocks the most popular Ganro rotary table models, accessories and spare parts. We have certified service technicians for installation and repair of all Ganro and Golden Sun rotary table and indexer models. Please contact us today to learn how adding a Ganro rotary table or indexer can help improve your manufacturing process.
