Rotary Tables and Accessories

CNC Indexing & Feeding Technologies is proud to represent the complete Ganro Industrial Corporation (Golden Sun) product line of rotary tables, indexers and accessories. For over 30 years Ganro has been producing a wide variety of rotary table and indexer products to accommodate most manufacturing indexing and rotating requirements. Ganro rotary tables can provide a solution for rotating and indexing small workpieces to large workpieces, for vertical and horizontal applications, for 4 axis and 5 axis work and for manual and automated applications. Ganro products give manufacturers the capability of improving the manufacturing process by accessing multiple workpiece faces in one clamping. This improves workpiece accuracy and reduces manufacturing cycle times. If you are not sure what product best meets your production requirements please contact CNC Indexing & Feeding Technologies to discuss your application. If you would like a complete Ganro product catalog please complete the contact us form.








Standard Large Rear Motor Mount Tilt
Faceplate Range:
5″ – 32″
Faceplate Range:
40″ – 98″
Faceplate Range:
6″ – 10″
Faceplate Range:
8″ – 31.5″





Horizontal Horizontal Index Face Gear Accessories
Faceplate Range:
16″ – 118″
Faceplate Range:
12″ – 55″
Faceplate Range:
10″ – 20″



<iframe width=”560″ height=”315″ src=”http://www.youtube.com/embed/fDqOn_ZJz1c” frameborder=”0″ allowfullscreen></iframe>




Our Rotary Tables

Standard Rotary Tables: The DR Series standard rotary tables are available in size ranges from 120mm (4.72”) to 800mm (31.49”) in faceplate diameter, with full rotating axis capabilities, vertical and horizontal mounting positions and large thru-holes for maximum flexibility.

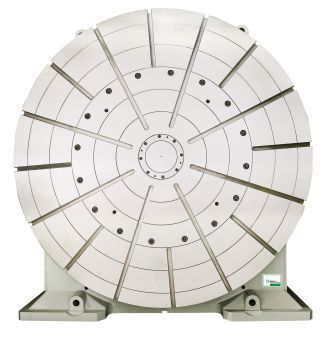

Large Rotary Tables: The standard DR Series also offers large rotary tables in size ranges of 1000mm (40”) to 2500mm (98”) in faceplate diameter. Our large rotary tables also offer vertical and horizontal mounting and full rotating axis capabilities. A hydraulic brake system allows these workholding devices to reach high clamping torques.

Rear Motor Mount Rotary Table: For smaller vertical machining centers, the rear motor mount rotary table is available in 170mm (6.69”) and 250mm (9.84”) faceplate diameters.. With cross cylindrical roller bearings, these tables achieve high rotation accuracy that can bear heavy loads in all directions.

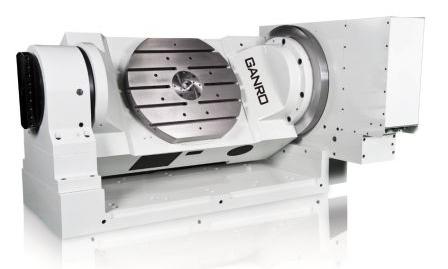

Tilt Rotary Tables: The Ganro Industrial Corporation tilt rotary tables are available in three different designs: standard trunnion tables; compact tilt rotary tables; and manual tilt tables. They accommodate a wide range of 4th and 5th axis manufacturing needs and sizing requirements.

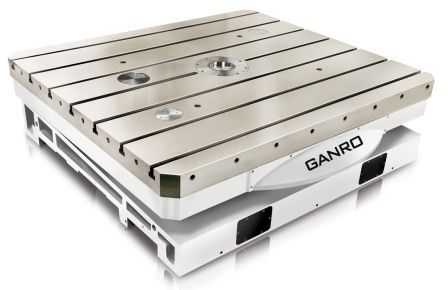

Horizontal CNC Rotary Tables: The HR Series horizontal CNC rotary tables range in size from 400mm (15.74”) to 3000mm (118.11”) square. The full rotating axis can be incorporated into a machine’s control or as an indexer with an M-Mate AC servo controller. Designed specifically and solely for horizontal mounting, these tables can bear heavy weights for large workpieces.

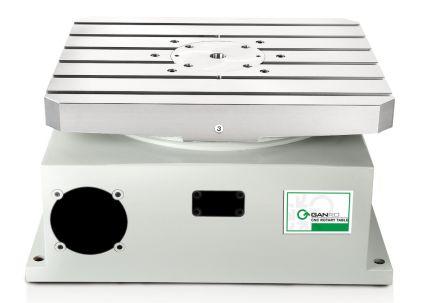

Horizontal Index Tables: The Ganro horizontal index tables come in two varieties: manual and CNC index tables. The HC Series can be incorporated into a machine’s CNC control or operated via M-Mate servo control system. The GCT Series is manually indexed.

Face Gear Rotary Tables: For heavy workloads that require a high degree of rigidity and accuracy, face gear rotary tables come in 250mm, 320mm, 400mm and 500mm sizes. Designed with a three-piece Hirth coupling for no-lift rotation, these tables can be operated through an AC servo controller or incorporated into the machine’s CNC controls.

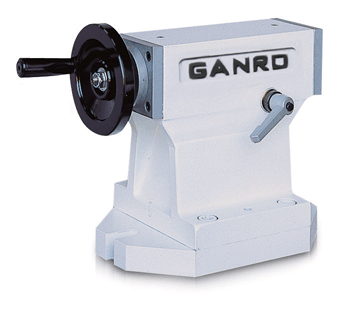

Rotary Table Accessories: We maintain a stock of the most popular accessories for Ganro rotary tables and indexers, including tailstocks and indexer controls. And with worldwide connections and resources, if we don’t have the accessories you need on hand, we can find them.

CNC Indexing & Feeding Technologies offers the complete line of Ganro Industrial Corp. rotary tables. However, many are unclear about what rotary tables can do for their business, as well as how they work in CNC machining. First, let’s consider the basics about a rotary table and how it works in the machining and manufacturing processes.

What is a Rotary Table and What Does It Do?

Milling and other industrial processes requires cutting and shaping, usually with a high degree of precision. This creates the need for computer-guided systems that can create work pieces, prototypes or tools for companies on demand. The process is expedited and can be completed quickly, reducing or eliminating the need for large assembly line staff or other hand crafters.

In many cases, the work pieces created through CNC machining would be impossible without computer assistance. The code used to communicate between the CNC machine and computer software is specialized. Older machines, or manual-controlled machines, used hard wired controllers. However, new CNC machines rely on modern devices like CDs, USB drives, networks and so on.

A lathe or milling machine requires its own set of parts to work sufficiently. For example, an indexing head is needed to allow circular shaping. The indexing element allows the piece to be rotated at an angle or even divided into sections. A rotary table can tilt and rotate. The table makes use of the indexing head in order to cut according to a specific technique. This function lets the machine create a workpiece with complete flexibility in rotation and angling that ordinarily wouldn’t be possible with handcrafting.

Manual and CNC differences simply involve the old world CNC machines, operated by levers, versus the new models which are controlled by Computer Numerical Control, usually software programs that manipulate the moving parts — and lend to the machine an ability to cut precise parts. Thus, a CNC rotary table is one that is controlled through a computer automatically.

How and Why Are Tables Used?

A rotary table can help to create arcs and circles, an important process in part or tool fabrication. Tools can be specially made, such as car parts, machine parts, and many other objects that a wide range of industries use day in and day out. The computer-aided process lets companies make straight cuts even amongst multiple angles, or to cut already small objects into even smaller parts. Machine rotary tables can also help in the processes of cutting gears, drilling or cutting holes in a part, or drilling holes in selected areas.

The rotary table can also be used along with a dividing head and index plate, to further concentrate the shaping. Tables are also used to hold certain parts for superior milling techniques.

With the addition of rotary tables, you will have a greater capacity to produce the parts you want, that are most profitable. This brings us to the primary advantage of CNC rotary tables: less time and greater accuracy in cutting.

Who Uses CNC Machines and Rotary Tables?

Companies are often outsourced to create work pieces for larger brands. However, some companies simply create their own prototypes, tools or work pieces with their own facility for machining. There are also contract shops, mechanic shops, electronics companies, inventors, engineering, and retail companies.

Whenever there is a new product, rest assured it never sees the light of day until it goes through an excruciating process of testing, documenting, and the creation of prototypes. This is another area in which CNC rotary tables are used.

Most companies do not have huge resources, warehouses and capital to fund major assembly lines and so they will scale their needs with small productions. In many cases, they may only have one facility or work with one type of part. The key is not to create “anything” but to specialize in objects created so the process can be streamlined.

Rotary tables offer the benefits of efficiency and accuracy for all these industries and tasks.

Benefits of Using Rotary Tables Through CNC

The benefits come not only in variety but also in enhanced capacity. A production company can save money by taking on outsourced production processes and using minimal resources to create the work pieces in bulk. The cycle and process will be created to match the resources on hand as well as the requested volume.

The benefits of using higher powered and enhanced machines through CNC include consistency, as well as faster production. Products and work pieces assembled through computer-aided systems are statistically more reliable than products created manually or through other methods. The process is identical each and every time and thus consistency in design can be guaranteed—major importance to a company trying to ensure safety protocol.

Flexibility is another advantage, as the systems are programmable. These systems are actually designed to minimize downtime in between their running processes. The newer systems’ flexibility is greatly preferred by companies that dread having to install and uninstall huge systems of yesterday that take up too much space. The capacity of complexity of product is another benefit. Complex motions made simpler by CNC rotary tables not only make greater products available and more affordable to produce; a major advantage for industrial and retail businesses hoping to keep prices low.

How Workers Interact with CNC

Naturally, such an intricate process cannot be unsupervised, since efficiency depends on optimal performance. Managers and supervisors are needed to oversee a machine rotary table operating with CNC controls, ensuring the machine and the software are configured correctly.

This involves setting the system up, installing the software, and watching over the production. If something goes wrong, the software must be fixed and the machine repaired. Machines are not constantly running, but must be evaluated and cleaned regularly, ensuring that they will be mostly self-sufficient.

Types of Tables You Might Need

There is a variety of table types you might find useful to work with, and we can meet all of your needs. We work with standard rotary tables with full rotating axis capabilities, and vertical and horizontal mounting positions.

We also offer large rotary tables with hydraulic brake systems, which allow higher clamping torques. You can also find assistance with smaller rear mount rotary tables or tilt rotary tables.

Horizontal rotary tables are specially made for horizontal mounting and carrying a much heavier weight. Horizontal index tables are available, whether in manual or CNC index tables style. Finally, there are face gear rotary tables and rotary table accessories, ideal for projects that need higher degrees of accuracy.

Remember that quality production is synonymous with efficiency and accuracy. Product producers must have the right equipment operating at full capacity in order to guarantee consistency — and in the end, their success.

CNC Indexing & Feeding Technologies can help you find the CNC rotary tables, indexers and other accessories you need to meet your production demands, from simple rotating feature (with a scalable and small setup) to larger work pieces, vertical and horizontal applications, or even 4 or 5 axis work. We are confident that by utilizing Ganro Industrial Corp. rotary tables, you will be able to improving your cycle and process time, reduce your down time and increase your profits.

You can always reach us if you have additional questions regarding how to get started and what you need. Don’t hesitate to call. It’s time to expand your business and your capability!
