- Connects a rotary table to a machining center for index machining
- Simple solution for a machine that does not have full 4th/5th axis capability
- User friendly and compact design

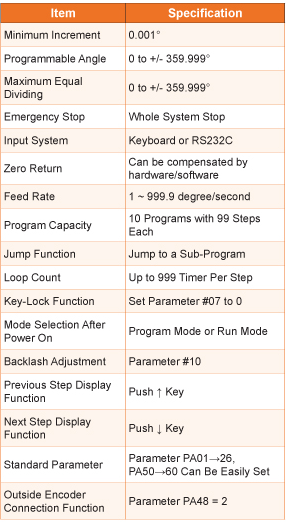

All of TJR’s rotary tables are capable of being used as an indexer by simply adding TJR’s SAC/DAC indexer control. The SAC/DAC is an AC servo driven programmable single/dual axis control that can be used as a stand-alone system or can be incorporated into a CNC machine by using an M-code or RS232 port. The SAC/DAC indexer control is ideal for positioning a workpiece prior to machining or for the manufacturer that wants the flexibility of moving the indexer between multiple machines. The SAC/DAC indexer control is capable of indexing in increments as small as 0.001° and is able to store 50 programs with up to 99 steps per program. The SAC/DAC indexer package includes the control, servo motor and cables. TJR also offers a optional MPG unit.
Find out more about our rotary table accessories by calling CNC Indexing & Feeding Technologies today at 513-770-4200.
