Gantry Loading Systems

Everyone knows automation is key to profitability. CNC Indexing’s AUTOLOAD Gantry Loading Systems are compatible with any CNC lathe and controller on the market today. AUTOLOAD gantry systems come in various sizes with single or twin arm gantries. Accessories include a servo driven B-axis on the gripper that can rotate 0-360° and was specifically designed for easy and fast loading of twin spindle lathes. All models come with a pneumatically operated gripper driven by a rotary cylinder. The gripper’s rotating angle is 180° (without a B-axis). For safety the loading area is guarded with either a light curtain or safety door. AUTOLOAD’s gantry systems are available in stocker or pallet style loading and unloading with optional inbound/outbound conveyor and flip over station.

Click here to jump to system specifications

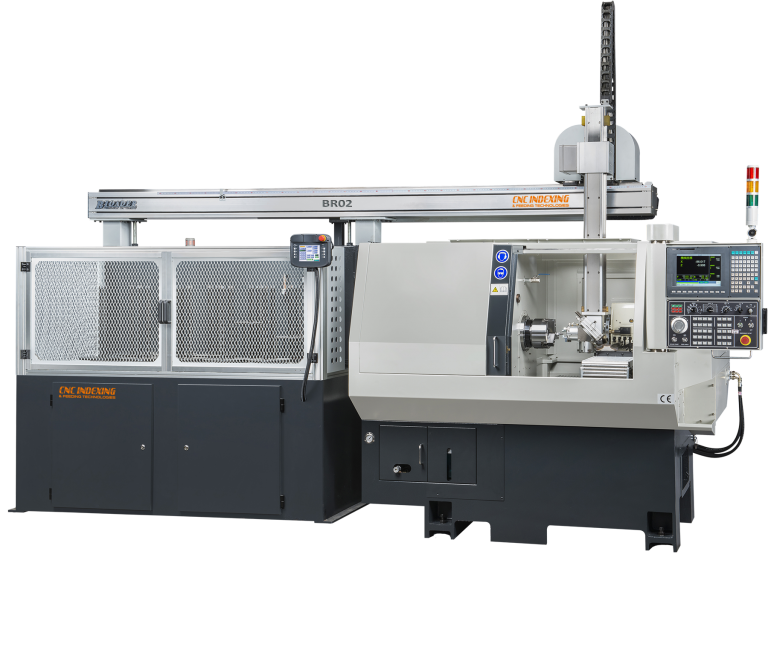

Example of recent installation

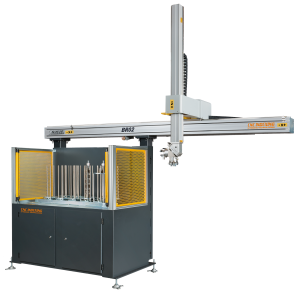

AUTOLOAD BR-02

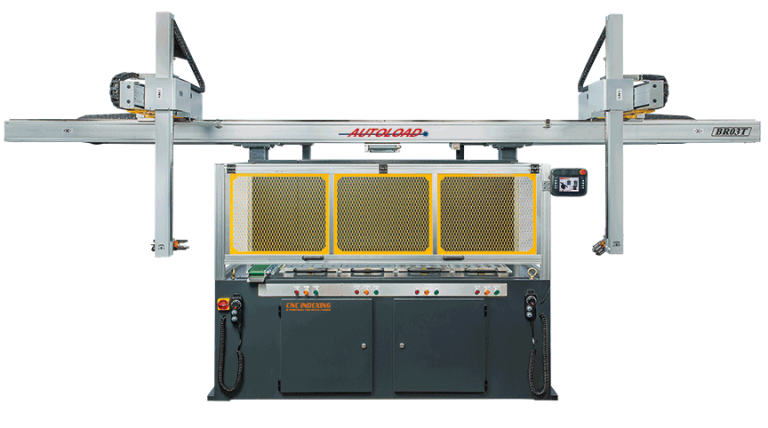

AUTOLOAD BR-03T

Model* AUTOLOAD BR-02 AUTOLOAD BR-03
X Axis Travel 1,350mm
Y Axis Travel  – 500mm
Z Axis Travel 800/1000/1200/1400mm
 Workpiece Gripping Max Diameter ∅20 ~ ∅120mm
∅20 ~ ∅150mm
 ∅5 ~ ∅80mm
Qty. of Rotary Station (R) / Pallet (P)  R10 / R12 / R16 P3
Payload (single workpiece)  3.0 kgf
X Axis Max Moving Speed  120m/min.
Y Axis Max Moving Speed – 120m/min.
Z Axis Max Moving Speed 90m/min.
Gripper Rotation Angle 180° / 360°
X Axis Servo Motor  850 Watts
Y Axis Servo Motor  – 400 Watts
Z Axis Servo Motor 400 Watts
Workpiece Flip Device – Optional
Pile-up Storage – Optional

* Additional model specifications available upon request
