TJR FHR Extended Cradle

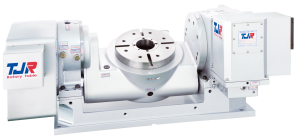

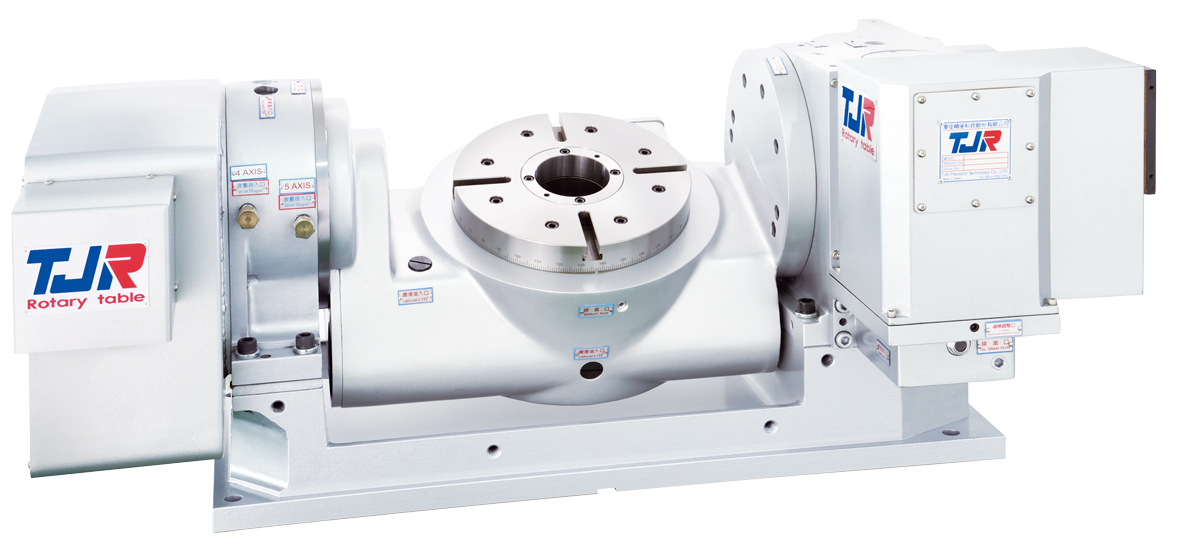

TJR FHR Extended Cradle Tilt Rotary Tables

The FHR-Series is TJR’s dual arm, hydraulic brake tilt rotary table line and is offered in multiple sizes and configurations. The FHR models featured here is a standard tilt dual arm extended cradle-type rotary table with a 255mm (10.03”) face plate diameter.

The FHR series employs a large thru-hole diameter that provides a larger space for work piece set-up and fixtures. The FHR-Series is ideal to convert your traditional 3 axis milling machine into a 5 axis machine for a portion of the cost of a new full 5 axis machine.

They are capable of being fully integrated into your current machine control so you can utilize as a full rotating and tilting axis for true 5 axis work. It is also capable of being used as a full 4th and 5th axis connecting to TJR’s DAC (Dual Axis Controller) in the event that you need to utilize the unit on multiple machine tools.

The FHR Series has (3) independent braking systems, and max tilting angle +/- 110 degrees. The FHR series is manufactured with large-diameter radial-axial preloaded bearing system for high rigidity that can perform light or heavy cutting.

Item/Model Unit FHR-255C / 255CL FHR-320 (Standard type) FHR-320C (Cradle type)
Table Diameter mm Ø 255 Ø 320 Ø 320
Diameter of Table Central Hole mm Ø 110 Ø 150 Ø 150
Inner Diameter of Mandrel Sleeve mm Ø 80H7 Ø 120H7 Ø 120H7x30 deep
Diameter of Center Through Hole mm Ø 80 Ø 120 Ø 80
Table Height (Horizontal) mm 290 355 310
Table T-slot Width mm 12H7 14H7 14H7
Guide Block Width mm 18h7 18h7 18h7
Axis   Rotation Tilt ±110º Rotation Tilt ±100º Rotation Tilt ±100º
Min. Increment deg. 0.001 0.001 0.001 0.001 0.001 0.001
Indexing Precision sec. 15 50
(30, if ECN-225 angle encoder is employed)
15 50
(30, if ECN-225 angle encoder is employed)
15 50
(Angle encoder can not be employed)
Repeatability sec. 4 8 4 8 4 8
Clamping System (Pneumatic) kg/cm2 35 35 35 35 35 35
Clamping Torque kg-m 70 140 115 175 70 175
Servo Motor Model FANUC Taper/Straight shaft α4i / α8i / α12is / ß8is (Taper) α4i / α8i / α12is / ß12is (Taper) α8i / α12is / ß12is (Taper) α12i / ß22is (Straight) α8i / α12is / ß12is (Taper) α12i / ß22is (Straight)
MITSUBISHI Taper shaft HF-104 HF-154 HF-104 HF-204 HF-104 HF-204
Speed Reduction Ratio – 1:60 1:90 1:72 1:120 1:90 1:90
Max. Rotation Rate of Table (Calculate with Fanuc α Motor) r.p.m 33.3 33.3 33.3 25 33.3 25
Allowable Inertia Load Capacity (Horizontal) kg.cm.sec2 8.13 25.6 25.6
Allowable Workpiece Load 0º Horizontal kg 100 200 200
0º~90º Tilt kg 75 150 100
Allowable Load(with Rotary Table Clamping) F kgf 1500 1800 1800
FxL kgf.m 140 175 175
FxL kgf.m 70 115 70
Strength of worm gears (Rotary axis) kg.m 55 80 55
Net Weight (servo motor excluded) kg 296 312 470 489

※In accordance with the foreign trade control ordinance, permission of the ministry of economy, trade and industry is required when exporting dual-axis products overseas.



Item/Model Unit FHR-350BC/FHR-400BC FHR-400CF FHR-350BCF
Table Diameter mm round plateØ 350,square plate□560×365/ound plate Ø400 Ø 400 round plate Ø 350,square plate□560×365
Diameter of Table Central Hole mm Ø150H7x27 deep / Ø150H7x10 deep Ø150 Ø150H7x27 deep
Inner Diameter of Mandrel Sleeve mm Ø 150H7x27 deep / Ø150H7x10 deep Ø 120H7 Ø 120H7x27 deep
Diameter of Center Through Hole mm Ø – Ø 120 Ø –
Table Height (Horizontal) mm 397/380 430 397
Table T-slot Width mm 14H7 14H7 14H7
Guide Block Width mm 18h7 18h7 18h7
Axis   Rotation Tilt ±110º Rotation Tilt ±100º Rotation Tilt ±100º
Min. Increment deg. 0.001 0.001 0.001 0.001 0.001 0.001
Indexing Precision sec. 12 50
(30, if ECN-225 angle encoder is employed)
15 50
(30, if ECN-225 angle encoder is employed)
12 50
(Angle encoder can not be employed)
Repeatability sec. 4 8 4 8 4 8
Clamping System (Pneumatic) kg/cm2 35 35 35 35 35 35
Clamping Torque kg-m 115 275 115 175 115 190
Servo Motor Model FANUC Taper/Straight shaft α8i/α12is/ß12is(Taper) α22i / ß22is (Taper) α8i/α12is/ß12is (Straight) α12i / ß22is (Straight) α8i/α12is/ß12is(Taper) α22i / ß22is (Straight)
MITSUBISHI Taper shaft HF-154 HF-354 HF-154 HF-354 HF-154 HF-354
SIEMENS Straight shaft 1FK7063 1FK7083 1FK7063 1FK7083 1FK7063 1FK7083
HEIDENHAIN Straight shaft QSY-116E QSY-155B QSY-116E QSY-155B QSY-116E QSY-155B
Speed Reduction Ratio – 1:120 1:120 1:120 1:120 1:120 1:120
Max. Rotation Rate of Table (Calculate with Fanuc α Motor) r.p.m 25 25 33.3 25 25 25
Allowable Inertia Load Capacity (Horizontal) kg.cm.sec2 33.7 / 44 40 30.6
Allowable Workpiece Load 0º Horizontal kg 220 200 200
0º~90º Tilt kg 120 100 100
Allowable Load(with Rotary Table Clamping) F kgf 1800 1800 1800
FxL kgf.m 275 175 190
FxL kgf.m 115 115 115
Strength of worm gears (Rotary axis) kg.m 80 80 80
Net Weight (servo motor excluded) kg 1060 / – 860 950

※In accordance with the foreign trade control ordinance, permission of the ministry of economy, trade and industry is required when exporting dual-axis products overseas.



Item/Model Unit FHR-500C(dual-arm, cradle type) FHR-630C(dual-arm, cradle type)
Table Diameter mm Ø500 Outer table Ø720 x 600, Inner table Ø500
Diameter of Table Central Hole mm Ø250 Ø250
Inner Diameter of Mandrel Sleeve mm Ø 220H7 Ø 220H7
Diameter of Center Through Hole mm Ø 220 Ø 220
Table Height (Horizontal) mm 440 480
Table T-slot Width mm 18H7 18H7
Guide Block Width mm 18h7 18h7
Axis   Rotation Tilt ±110º Rotation Tilt ±100º
Min. Increment deg. 0.001 0.001 0.001 0.001
Indexing Precision sec. 15 50
(30, if ECN-225 angle encoder is employed)
15 50
(30, if ECN-225 angle encoder is employed)
Repeatability sec. 4 8 4 8
Clamping System (Hydraulic) kg/cm2 35 35 35 35
Clamping Torque kg-m 370 410 370 800
Servo Motor Model FANUC Taper/Straight shaft α12i α22i α12i α40i
MITSUBISHI Taper shaft HF-204 HF-354 HF-204 HF-703S
SIEMENS Straight shaft – – 1FK7083 1FK7101 / 7103
DELTA Straight shaft – – – –
YASKAWA Straight shaft – – – –
Speed Reduction Ratio – 1:120 1:180 1:120 1:180
Max. Rotation Rate of Table (Calculate with Fanuc α Motor) r.p.m 25 11.1 25 11.1
Allowable Inertia Load Capacity (Horizontal) kg.cm.sec2 93.75 180
Allowable Workpiece Load 0º Horizontal kg 500 500
0º~90º Tilt kg 300 400
Allowable Load(with Rotary Table Clamping) F kgf 3000 3200
FxL kgf.m 410 800
FxL kgf.m 370 370
Strength of worm gears (Rotary axis) kg.m 250 250
Net Weight (servo motor excluded) kg 1091 1817

※In accordance with the foreign trade control ordinance, permission of the ministry of economy, trade and industry is required when exporting dual-axis products overseas.



Contact Us

  • Fill out the form below and we’ll be glad to assist you with your manufacturing questions and needs.

Contact

7944 Innovation Way Suite B
Mason, OH 45040

513.770.4200

Links

  • Products
  • Trade Shows
  • News
  • About Us
  • Clearance
  • Contact us

Follow Us

©Copyright 2021 CNC Indexing. All Rights Reserved
Web Design and Content Management System by Thunderhead Marketing
