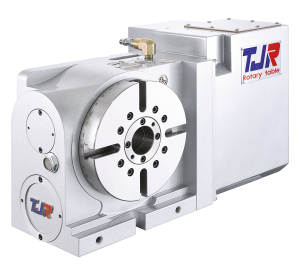

Direct Drive & Roller Gear Cam Rotary Tables

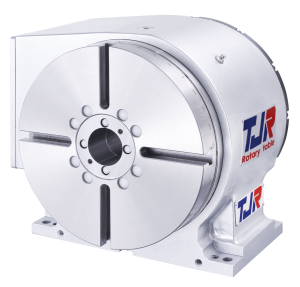

The AD-Series is TJR’s Direct Drive rotary table that is offered in multiple sizes. The sizes range from 170mm (6.69”) to 260mm (10.23”) face plate diameter.

The AD series is ideal for small vertical machines and drill tap applications. They are capable of being used as a full 4th axis that is integrated into the CNC machine control or as an indexer with the use of TJR’s SAC (Single Axis Controller).

These units truly have zero backlash during rotation in either direction. In addition there is zero wear do to the design of the units, which ensures long-lasting high precision accuracy. They are also capable of high speed rotation 100-200 rpms with high rate of acceleration. The AD- Series direct drive rotary table also uses the powerful pneumatic braking system that is employed in the AR-Series.

Want to know more? Contact CNC Indexing today by calling 513-770-4200.

ItemUnitAD-170AD-210AD-260iBHorizontal
HAD-170/210F/250F
Table DiametermmØ170Ø210Ø250Ø170, Ø210, Ø250
Diameter of Table Central Holemm––––
Inner Diameter of Mandrel SleevemmØ40H7Ø40H7Ø46H7Ø40H7
Diameter of Center Through HolemmØ 40Ø 40Ø 46Ø40
Center Height (Vertical)mm135160160–
Table Height (Horizontal)mm–––192.5
Table T-slot Widthmm 12H7 12H7 12H712H7
Guide Block Widthmm18h718h718h718h7
Cooling System–Free CoolingFree CoolingFree Cooling/Water CoolingFree Cooling
Min. Incrementdeg.0.0010.0010.0010.001
Indexing Precisionsec.20202020
Repeatabilitysec.4444
Clamping System (Pneumatic)kg/cm26666
Clamping TorqueNm310310450(Powerful)310
Servo Motor Model–DD MotorDD MotorDD MotorDD Motor
Speed Reduction Ratio–Direct DriveDirect DriveDirect DriveDirect Drive
Rated / Max. Speedr.p.m150/200150/200150/200150/200
Rated / Max. Cutting TorqueNm48/26048/26048/(Water Cooling 118)/26048/260
Allowable Inertia Load Capacitykg ∙ cm / sec21.081.657.82.5
Allowable
Workpiece Load
VerticalkgPlease refer to the manual
with TailstockkgPlease refer to the manual
HorizontalkgPlease refer to the manual
Allowable Load
(with clamping)
FN80008000100008000
FxLNm105105231690
FxLNm310310500310
Net Weightkg55618460/ 61/ 62
Electrical Specification
Encoder–Subject to demand and controller
Voltage (Back E.M.F)Vrms/100rpm67.267.267.267.2
Rotor Poles–44444444
Rated / Max. CurrentArms4.4/13.24.4/13.24.4/13.2/11.8 (Water-Cooling Current)4.4/ 13.2
Power RatingKW0.750.750.75 / 1.9 (Water Cooling)0.75
