Rear Motor Mount Rotary Table

Rear Motor Mount Rotary Tables

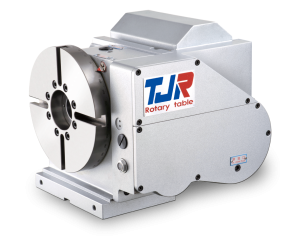

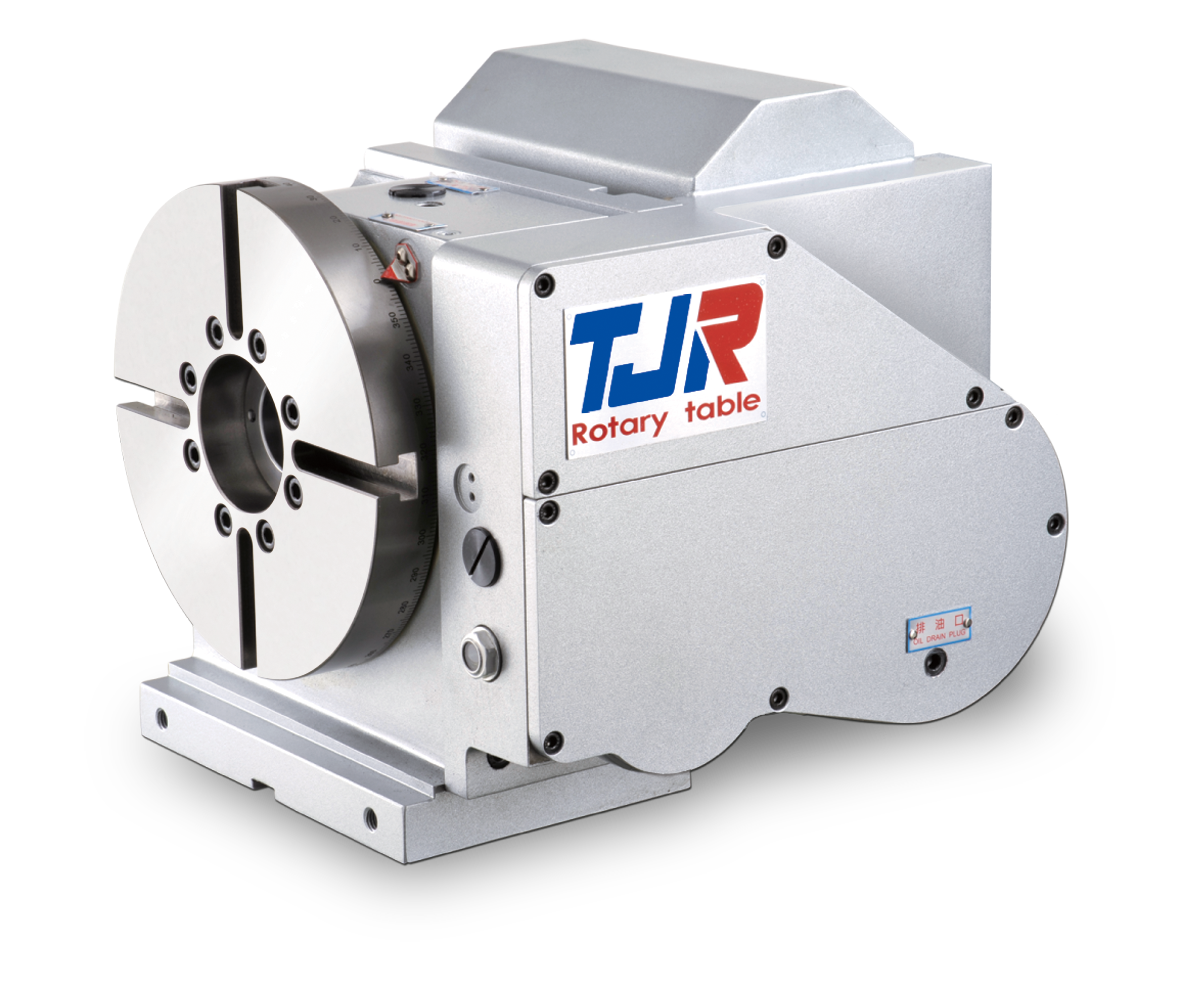

The AR-Series is TJR’s standard 4th axis rotary table that is offered in multiple sizes. The models featured here are for Rear (Back) motor mounting and range from 125mm (4.92”) to 250mm (9.84”) face plate diameter. They are capable of being used as a full 4th axis that is integrated into the CNC machine control or as an indexer with the use of TJR’s SAC (Single Axis Controller).

These units are capable of being mounted in both the vertical and horizontal position. In addition they are also offered Right Handed and Left Handed motor configuration with a powerful pneumatic braking system.

The AR series is manufactured with a radial-axial preloaded bearing system for high rigidity that can perform light or heavy cutting. The AR-Series uses a dual lead worm shaft and worm gear to ensure long term indexing accuracy in both directions.

Item/Model Unit AR-125B AR-170B AR-210B AR-250B
Table Diameter mm Ø 125 Ø 170 Ø 210 Ø 250
Diameter of Table Central Hole mm Ø 35H7 Ø 67 Ø 67 Ø 67
Inner Diameter of Mandrel Sleeve mm – Ø 40H7 Ø 40H7 Ø 40H7
Diameter of Center Through Hole mm Ø 25 Ø 40 Ø 40 Ø 40
Center Height (Vertical) mm 110 135 160 160
Table Height (Horizontal) mm – – – –
Table T-slot Width mm 12H7 12H7 12H7 12H7
Guide Block Width mm 14h7 18h7 18h7 18h7
Min. Increment deg. 0.001 0.001 0.001 0.001
Indexing Precision sec. 40 20 20 20
Repeatability sec. 4 4 4 4
Clamping System (Pneumatic) kg/cm2 6 6 6 6
Clamping Torque kg-m 13 31 31 31
Servo Motor Model FANUC Taper shaft α2i / ß4is α4i / α8i / ß8is α4i / α8i / ß8is α4i / α8i / ß8is
MITSUBISHI Taper shaft HF-75 / 105 HF-54 / 104 HF-54 / 104 HF-54 / 104
Speed Reduction Ratio – 1:60 1:90 1:90 1:90
Max. Rotation Rate of Table (Calculate with Fanuc α Motor) r.p.m 83.3 44.4 44.4 44.4
Allowable Inertia Load Capacity (Horizontal) kg.cm.sec2 2 2.7 4.1 5.9
Allowable Workpiece Load Vertical kg 50 75 75 75
with Tailstock kg 100 150 150 150
Horizontal kg – – – –
Allowable Load(with Rotary Table Clamping) F kgf 1000 1450 1450 1450
FxL kgf.m 45 100 100 100
FxL kgf.m 13 31 31 31
Strength of worm gears kg.m 9 18 18 18
Net Weight (servo motor excluded) kg – 60 65 72
