TJR AR-W Series – Multi-Spindle Rotary Tables

Multi-Spindle Rotary Tables

The AR-W Series is TJR’s multi-spindle 4th axis rotary table that is offered in multiple sizes. The sizes range from 170mm (6.69”) to 210mm (8.26”) face plate diameter.

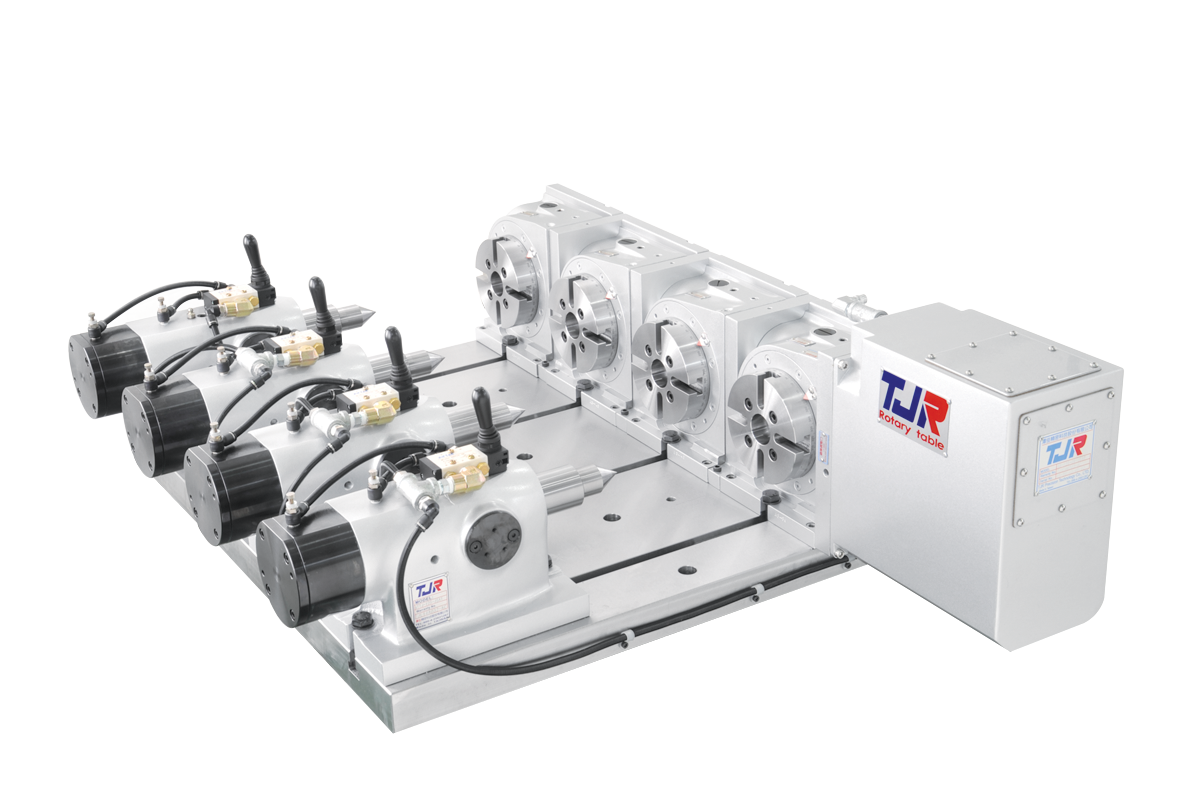

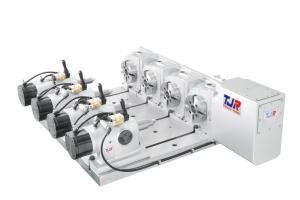

The 170/210mm is offered in a dual spindle or 3 spindle configurations. TJR also offers a 125mm (4.92”) unit with 4 spindles along with 4 separate manual tailstocks mounted on a single base place. These multi-spindle rotary tables are ideal to increase productivity by reducing the load/unload time along with reducing the amount of required tool changes.

All models offered employ the same powerful pneumatic braking system that is offered in the standard AR Series. In addition, the AR-W series multi-spindle rotary tables are manufactured with the same radial-axial preloaded bearing system for high rigidity that can perform light or heavy cutting. The AR-W Series also uses a dual lead worm shaft and worm gear to ensure long term indexing accuracy in both directions.

Item/ModelUnitAR-125- 2W/3W/4WAR-170-2W/3WAR-210-2W/3W
Table DiametermmØ 125Ø 170Ø 210
Diameter of Table Central HolemmØ 35H7Ø 67Ø 67
Inner Diameter of Mandrel Sleevemm–Ø 40H7Ø 40H7
Diameter of Center Through HolemmØ 25Ø 40Ø 40
Center Height (Vertical)mm135175200
Minimurn distance between table centersmm200300300
Table T-slot Widthmm12H712H712H7
Guide Block Widthmm14h718h718h7
Min. Incrementdeg.0.0010.0010.001
Indexing Precisionsec.402020
Repeatabilitysec.444
Clamping System (Pneumatic)kg/cm2666
Clamping Torquekg-m133131
Servo Motor ModelFANUCTaper shaft

(2W/3W) α4i / ß8is

(4W) α8i / ß12is

α8i / ß12isα8i / ß12is
MITSUBISHITaper shaftHF-154HF-104/154HF-104/154
Speed Reduction Ratio–1:601:901:90
Max. Rotation Rate of Table (Calculate with Fanuc α Motor)r.p.m83.344.444.4
Allowable Inertia Load Capacity (Horizontal)kg.cm.sec2–5.48.3
Allowable Workpiece LoadVerticalVertical workpiece load for TJR multi-spindle rotary tablekg507575
with Tailstockkg100150150
Allowable Load(with Rotary Table Clamping)FAllowable load for TJR multi-spindle rotary tablekgf100014501450
FxLFxL Allowable loadkgf.m45100100
FxLFxL Allowable loadkgf.m133131
Strength of worm gearsTJR multi-spindle rotary table wormgear strengthkg.m91818
Net Weight (servo motor excluded)kg82 /120/ –0000
