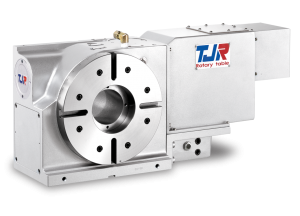

TJR HR Hydraulic Brake Series

The HR-Series is TJR’s hydraulic brake series of standard 4th axis rotary tables that is offered in multiple sizes. The sizes range from 210mm (8.26”) to 800mm (31.49”) face plate diameter. The HR series offers a Big Bore through hole design that delivers high rigidity and offers a larger work space for piece set up with fixtures and can be adjusted by using a mandrel sleeve.

These units are capable of being mounted in both the vertical and horizontal position. The HR series also offer a reduced sheet metal design that is suitable for tight vertical or horizontal applications.

The HR series is manufactured with a large radial-axial preloaded bearing system for high rigidity that can perform heavy cutting. The HR-Series uses a dual lead worm shaft and worm gear to ensure long term indexing accuracy in both directions.

Item/Model Unit HR-210 HR-255 HR-320 HR-400
Table Diameter mm Ø 210 Ø 255 Ø 320 Ø 400
Diameter of Table Central Hole mm Ø 67 Ø 110 Ø 150 Ø 150
Inner Diameter of Mandrel Sleeve mm Ø 40H7 Ø 80H7 Ø 120H7 Ø 120H7
Diameter of Center Through Hole mm Ø 40 Ø 80(Big Bore) Ø 120(Big Bore) Ø 120(Big Bore)
Center Height (Vertical) mm 160 160 210 255
Table Height (Horizontal) mm 152 200 235 250
Table T-slot Width mm 12H7 12H7 14H7 14H7
Guide Block Width mm 18h7 18h7 18h7 18h7
Min. Increment deg. 0.001 0.001 0.001 0.001
Indexing Precision sec. 20 15 15 15
Repeatability sec. 4 4 4 4
Clamping System (Hydraulic) kg/cm2 25 35 35 35
Clamping Torque kg-m 35 70 115 200
Servo Motor Model FANUC – α4i/α8i/ß8is(Taper shaft) α8i/ß8is(Taper shaft) α12i/ß22is(Straight shaft) α12i/ß22is(Straight shaft)
MITSUBISHI – HF-54/104 (Taper shaft) HF-104/154 (Taper shaft) HF-204 (Straight shaft) HF-204 (Straight shaft)
Speed Reduction Ratio – 1:90 1:120 1:120 1:120
Max. Rotation Rate of Table (Calculate with Fanuc α Motor) r.p.m 44.4 33.3 25 25
Allowable Inertia Load Capacity (Horizontal) kg.cm.sec2 8.3 20.3 44.8 100
Allowable Workpiece Load Vertical kg 75 100 150 200
with Tailstock kg 150 250 350 500
Horizontal kg 150 250 350 500
Allowable Load(with Rotary Table Clamping) F kgf 1450 2000 3000 4000
FxL kgf.m 100 112 300 400
FxL kgf.m 35 70 115 200
Strength of worm gears kg.m 18 55 80 170
Net Weight (servo motor excluded) kg 55 109 204 315



Item/Model Unit HR-500R HR-630R HR-800R
Table Diameter mm Ø 500 Ø 630 Ø 800
Diameter of Table Central Hole mm Ø 250 Ø 325 Ø 395
Inner Diameter of Mandrel Sleeve mm Ø 220H7 Ø 280H7 Ø 350H7
Diameter of Center Through Hole mm Ø 220 (Big Bore) Ø 280 (Big Bore) Ø 350 (Big Bore)
Center Height (Vertical) mm 310 400 470
Table Height (Horizontal) mm 290 325 350
Table T-slot Width mm 18H7 18H7 18H7
Guide Block Width mm 18h7 18h7 18h7
Min. Increment deg. 0.001 0.001 0.001
Indexing Precision sec. 15 15 15
Repeatability sec. 4 4 4
Clamping System (Hydraulic) kg/cm2 35 35 35
Clamping Torque kg-m 370 800 800
Servo Motor Model FANUC Direct Shaft without Key α12i / ß22is α12i / ß22is α22i
MITSUBISHI Direct Shaft without Key HF-204 HF-204 HF-204
Speed Reduction Ratio – 1:180 1:180 1:180
Max. Rotation Rate of Table (Calculate with Fanuc α Motor) r.p.m 16.6 16.6 11.1
Allowable Inertia Load Capacity (Horizontal) kg.cm.sec2 187.5 396.9 1200
Allowable Workpiece Load Vertical kg 250 400 800
with Tailstock kg 600 800 1500
Horizontal kg 600 800 1500
Allowable Load(with Rotary Table Clamping) F kgf 4000 5000 5000
FxL kgf.m 500 850 1000
FxL kgf.m 370 800 800
Strength of worm gears kg.m 250 420 800
Net Weight (servo motor excluded) kg 405 692 –
