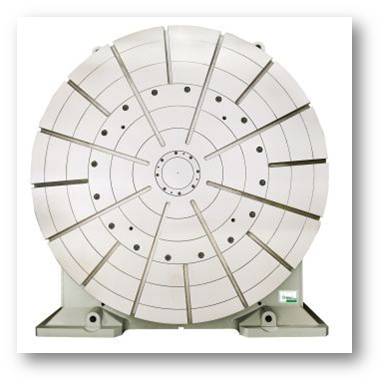

Large Rotary Table

Handle large, heavy work pieces with 4 axis versatility

High load capacity due to rigid axial radial roller bearings

Can be configured for vertical or horizontal usage

Can be setup as full 4th axis or as an indexer

Ganro Large Rotary Tables

Ganro Industrial Corporation offers large rotary tables in their standard DR series configuration. The large rotary tables are available in a range of 1000mm (40”) to 2500mm (98”) in faceplate diameter. They can be utilized as a full rotating axis incorporated into a machine’s control or as indexers with Ganro’s M-Mate AC servo controller. These rotary tables and indexers are all capable of being mounted in both the vertical and horizontal positions to give manufacturers maximum flexibility. These large rotary tables and indexers utilize a hydraulic brake system to reach high clamping torques. All Ganro DR Series rotary tables and indexers use Ganro’s core technology of a double lead worm shaft and worm wheel system for high precision and reduced backlash. Ganro rotary tables are assembled using cross cylindrical roller bearings with high rotation accuracy capable of bearing heavy loads in every direction.

You may also be interesting in our Standard Rotary Tables or our Tilting Rotary Tables.

Large Rotary Tables
Item/Model No.   DR-1000R DR-1250R DR-1500R DR-2000R DR-1500R
Diameter of Table mm/inch Ø1000 / 39.37″ Ø1250 / 49.21 Ø1500 / 59.05″ Ø2000 / 78.74″ Ø2500 / 98.42″
Diameter of Thru-hole mm/inch Ø400 / 15.74″ – – – –
Center Height in Vertical mm/inch 600 / 23.62″ 810 / 31.89″ 900 / 35.43″ 1100 / 43.30″ 1375 / 54.13″
Overall Height in Vertical mm/inch 1100 / 43.31″ 1435 / 56.50″ 1650 / 64.96″ 2100 / 82.68″ 2625 /103.35″
Overall Height in Horizontal mm/inch 400 / 15.75″ 600 / 23.62″ 700 / 27.56″ 720 / 28.35″ 900 / 35.43″
Width of T Slot mm 22H7 22H7 22H7 28H7 28H7
Width of Guide Block mm 22H7 22H7 28H7 36I7 36I7
Servo Motor Type FANUC α30i α30i α30i α40i α40i
MITSUBISHI HF-453 HF-453 HF-453 HF-703 HF-703
SIEMENS 1FK7103 1FK7103 1FK7103 1FK7105 1FK7105
HEIDENHAIN QSY190C QSY190C QSY190C QSY190F QSY190F
Total Reduction Ratio   1:360 1:720 1:720 1:720 1:900
MIN. Increment deg. 0.001° 0.001° 0.001° 0.001° 0.001°
MAX. Rotation Speed (Motor:2000 RPM) RPM 5.5 2.7 2.7 2.7 2.7
Clamping Torque   kgf•m / ft•lb
Hydraulic
System:35kg/cm2
2600 / 18,805 3030 / 21,916 3700 / 26,762 6200 / 44,844 12,000 / 86,796
Indexing Accuracy sec. 10″(w/RON275) 10″(w/RON275) 10″(w/RON275) 10″(w/RON275) 10″(w/RON275)
Repeatability Accuracy Unidirectional sec. Based on Encoder
Bidirectional
N.W. kg / lbs 2000 / 4410 4000 / 8818 6500 / 14,330 8000 / 17,637 10000 / 22,046
MAX. Work Load Vertical kg / lbs 1000 / 2205 2000 / 4409 3000 / 6614 4000 / 8818 4500 / 9920
Horizontal kg / lbs 5000 / 11,023 6000 / 13,228 8000 / 17,637 10,000 / 22,046 11,000 / 24,250
MAX. Thrust Load F (Axial Force) kgf /lbf 2800 / 6173 5000 / 11, 023 10,000 / 22,046 15,000 / 33,069 20,000 / 44,092
F×L (Radial Moment) kgf•m / ft•lb 1500 / 10,850 21000 / 15,189 2600 / 18,805 3500 / 25,315 3500 / 25,315
F×L (Tilting Moment) kgf•m / ft•lb 2250 / 16,274 3150 / 22,784 3900 / 28,208 5250 / 37,973 5250 / 37,973
Driving Torque kgf•m / ft•lb 400 / 2893 500 / 3617 580 / 4195 700 / 5063 875 / 6329

Download and Print Specifications (Use Landscape Layout when Printing)

Certified Large Rotary Table Service Techs

As the exclusive importer and dealer of Ganro products in the United States, CNC Indexing & Feeding Technologies stocks the most popular Ganro rotary table models, accessories and spare parts. We have certified service technicians for installation and repair of all Ganro and Golden Sun rotary table and indexer models. Please contact us today to learn how adding a Ganro rotary table or indexer can help improve your manufacturing process.
