Tilt/rotary configuration permits complex 5 axis machining
Turn your 3 axis machine into a 5 axis machine for a
fraction of the cost of a new machine
High rigidity allowing for heavy loads
Can be setup as full 4th / 5th axis or as an indexer
TJR Standard Tilt Rotary Tables
TJR’s standard tilt rotary tables offer several options for turning your traditional 3 axis milling machine into a 5 axis machine for a portion of the cost of a new full 5 axis machine.

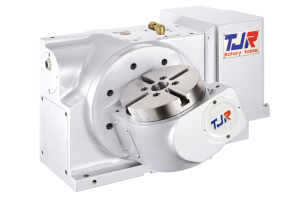

The FAR-Series pneumatic brake tilt rotary table line and is offered in multiple sizes and configurations and is available in single arm or dual arm type.
The FHR-Series is a dual arm, hydraulic brake tilt rotary table line offered in multiple sizes and configurations. This series has (3) independent braking systems, and max tilting angle +/- 110 degrees.
The FAR and FHR Series standard tilt rotary tables are capable of being fully integrated into your current machine control so you can utilize as a full rotating and tilting axis for true 5 axis work. It is also capable of being used as a full 4th and 5th axis connecting to TJR’s DAC (Dual Axis Controller) in the event that you need to utilize the unit on multiple machine tools. All are manufactured with large-diameter radial-axial preloaded bearing system for high rigidity that can perform light or heavy cutting.
